Commercial Reverse Osmosis RO Systems

Pure Aqua’s commercial reverse osmosis system “RO-200 series” is a compact and energy-efficient commercial RO unit, designed ideally for tap, brackish and drinking water treatment applications. Our…

Commercial Reverse Osmosis RO Systems

Product Images

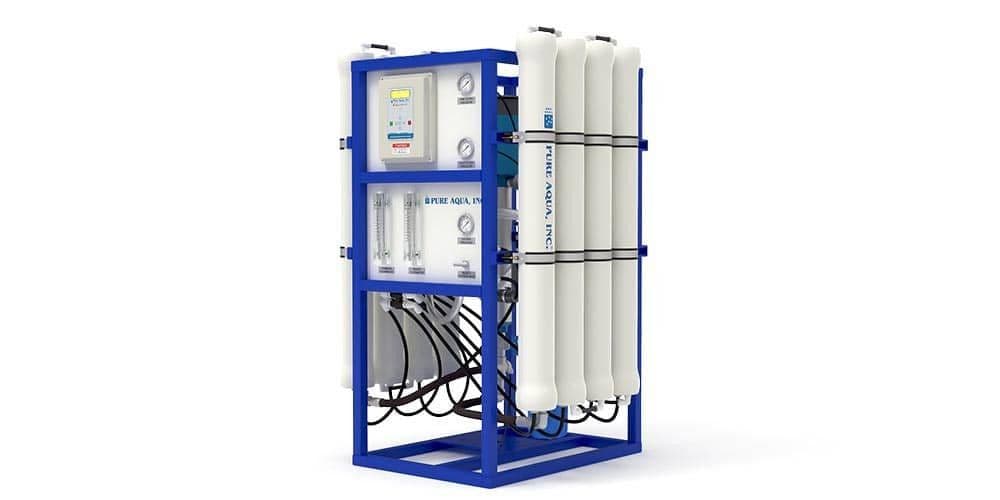

Commercial Reverse Osmosis RO Systems RO-200 — image 2

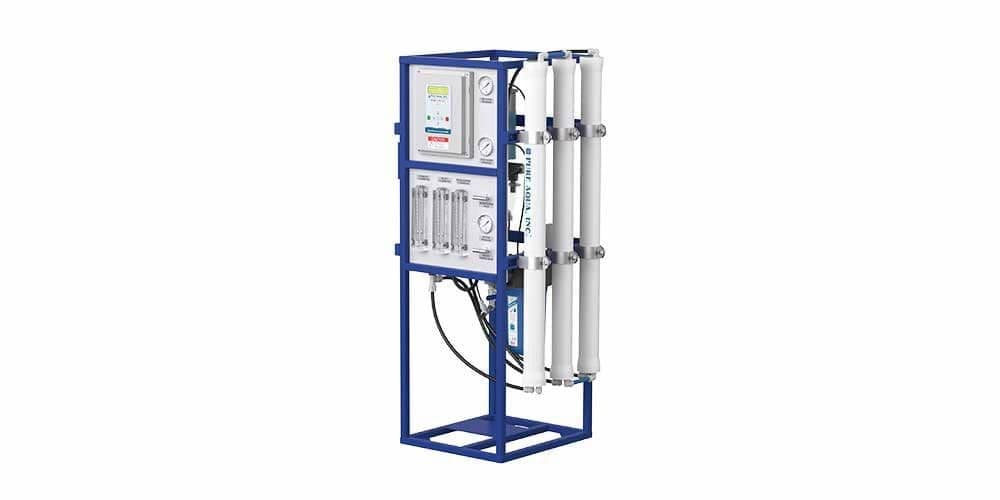

Commercial Reverse Osmosis RO Systems RO-200 — image 3

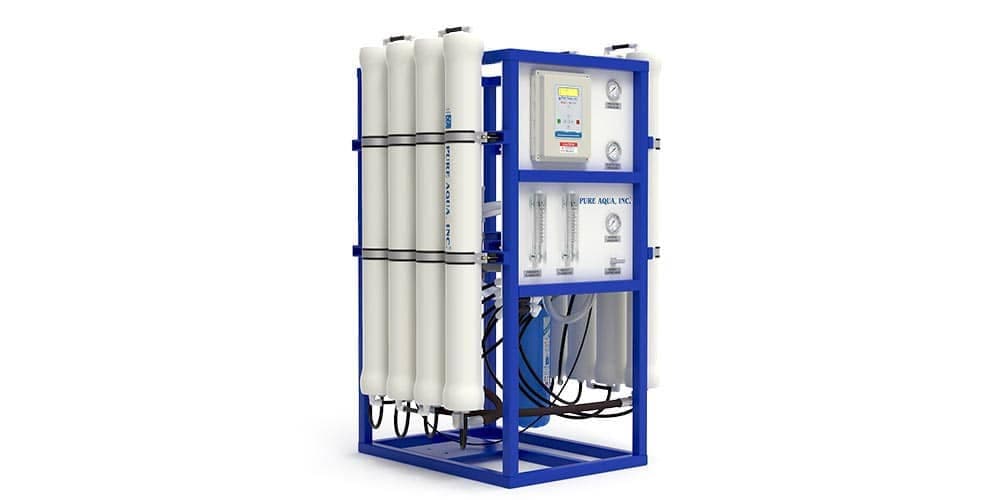

Commercial Reverse Osmosis RO Systems RO-200 — image 4

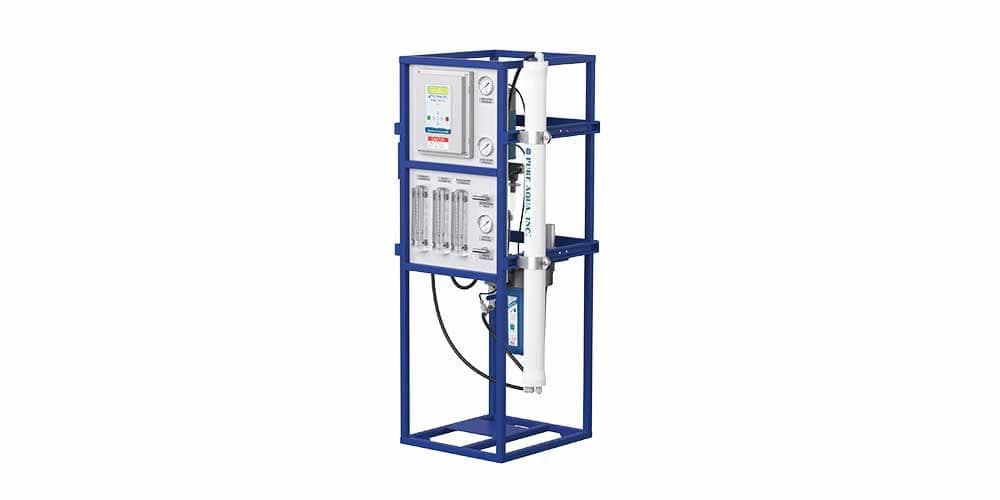

Commercial Reverse Osmosis RO Systems RO-200 — image 5

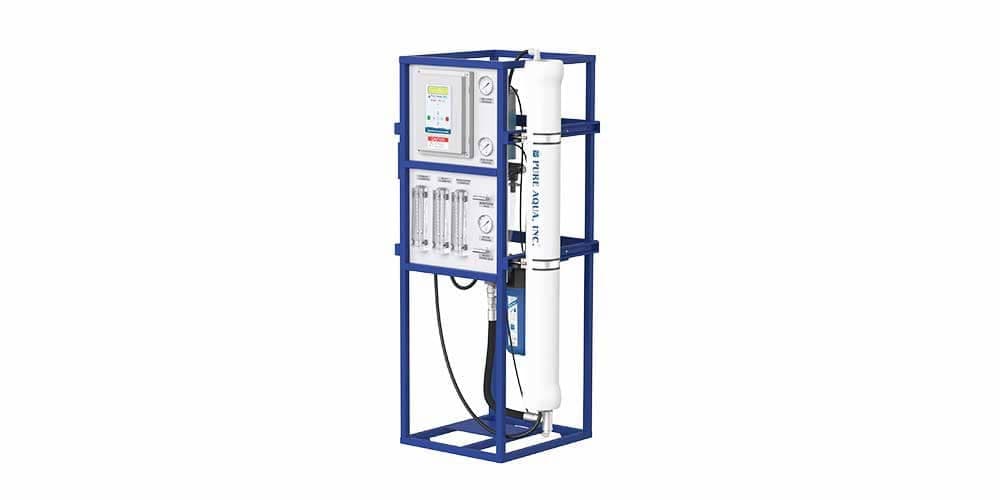

Commercial Reverse Osmosis RO Systems RO-200 — image 6
1 / 5

Product Description

Pure Aqua’s commercial reverse osmosis system “RO-200 series” is a compact and energy-efficient commercial RO unit, designed ideally for tap, brackish and drinking water treatment applications. Our small commercial reverse osmosis equipmentis capable of reaching incredibly high recovery rates.

As a global supplier, we offer a full line of pre-engineered and custom reverse osmosis systems for commercial use, ranging from600to18,000GPD. These commercial RO systems produce high-quality water at a very low cost, all of which are engineered using the most advanced technology for accurate and customized solutions.

A commercial ro system will take care of removing unwanted dissolved solids from your tap, brackish orwell waterthrough the utilization of highly efficientreverse osmosis membranes. Less wastewater, low energy consumption, high flow rates and contaminant rejection at competitive prices makes our commercial RO system the most valuable in the market. These systems incorporate dependable components and an extremely sturdy construction, along with highly desirable features from years of experiences of producing high quality commercial reverse osmosis purifiers.

Additional perks provided by our commercial RO water system include:

Skid mounted commercial reverse osmosispurifiersare tasked with purifying water from water sources such as lakes, rivers and wells. A commercial RO system utilizes a high pressure pump that pressurizes brackish or saline water against the surface of a semi-permeable membrane containing small pores. Water molecules are only permitted to flow through the small pores while blocking impurities such as salt, particles, minerals, and other organics from passing through. These small pores have a strong capability of rejecting bacteria and disease-causing pathogens. At the end of this process, clean, purified water emerges on the lower-pressured side while salts, minerals, and other organics are sent into the brine stream then into a drain.

Custom & High Capacity Commercial Reverse Osmosis Filtration Systems:

Our commercial reverse osmosis units are manufactured to be with user-friendly, environmental friendly, long-term reliability, and robust construction in mind.

A commercial RO system can be customized based on individual design needs to include chemical dosing,cleaning skids, antiscalant, filters and more. Our commercial reverse osmosis machine can accommodate between600 to 18,000 GPD, with feed water TDS of 1,000 to 5,000 ppm. These features have the capability of removing hardness, chlorine, odors, color, iron, and sulfur. Economical and efficient, RO-200 commercial reverse osmosis machines acquire the latest in reverse osmosis technology to removedissolved salts, particles, organics, minerals,tanninsand other contaminants from the water with a molecular weight greater than 150-250 Dalton. At Pure Aqua, we use the most efficient, energy saving, high rejection membranes made byDow Filmtec,Hydranautics,Toray.

Max. feed water temperature42°C
Max. Silica tolerance60 ppm @ 50% recovery
Feed water TDS0-2,000 ppm
Operating pressure150 to 250 psi
pH tolerance range3-11
Max. Iron content0.05 ppm
Feed water pressure20 to 80 psi

Models

Models

Commercial RO System RO-200 Series
Model NumberPermeate Flow RateMembranesMotor HP Rating at 1,000 ppmApprox. Weight (lbs)Dimensions L"x W" x H"
GPDM3/DSizeQty.60Hz50Hz
TW-0.6K-12560022.5"x40"11/23/415022x26x55
TW-1.2K-2251,20052.5"x40"21/2115022x26x55
TW-1.8K-3251,80072.5"x40"33/4115022x26x55
TW-1.5K-1401,50064"x40"13/4115022x26x55
TW-3.0K-2403,000114"x40"23/4120022x26x55
TW-4.5K-3404,500174"x40"33/4122022x26x55
TW-6.0K-4406,000234"x40"41124022x31x55
TW-7.5K-5407,500284"x40"511 1/226022x31x55
TW-9.0K-6409,000344"x40"61 1/21 1/228022x31x55
TW-12.0K-84012,000454"x40"81 1/2238034x37x60
TW-15.0K-104015,000574"x40”102345034x37x60
TW-18.0K-124018,000684"x40”122360040x40x60
For more information, please view/download "commercial reverse osmosis RO systems data sheet"

Features

  • 2.5"/4" TFC spiral wound membranes
  • Heavy duty high pressure tubing
  • Low pressure switch
  • Product and reject flow meters
  • Electric inlet solenoid valve
  • Corrosion resistant high pressure throttling valve
  • Pretreatment lockout
  • Factory tested
  • Powder coated carbon steel frame
  • Corrosion resistant high pressure pump
  • 220V/1Ph/60Hz power supply
  • Pre/post-treatment and pump pressure gauges
  • Recycle valve (standard up to 4.5K GPD)
  • FRP/SS pressure vessel
  • Tagging and identification of instrumentation
  • Heavy duty 5 micron cartridge pre-filter
  • Automatic flush (optional)
  • Pre piped skid system (optional)
  • Blending: feed/product (optional)
  • Tank float switch (optional)
  • Recycle flow meter (optional)
  • Post DI polishers (optional)
  • 380-415V/3Ph/50Hz power supply (optional)
  • 220-240V/1Ph/50Hz power supply (optional)
  • 220V or 460v 3Ph/60Hz power supply (optional)
  • Water softeners (optional)
  • UV sterilizers (optional)
  • Media filters (optional)
  • pH or ORP meter (optional)
  • High pressure switch (optional)
  • Export wood crating (optional)

Applications

Typical applications for Commercial Reverse Osmosis RO Systems include industrial, commercial, and municipal water treatment — contact our team for project-specific guidance.
