Product Description

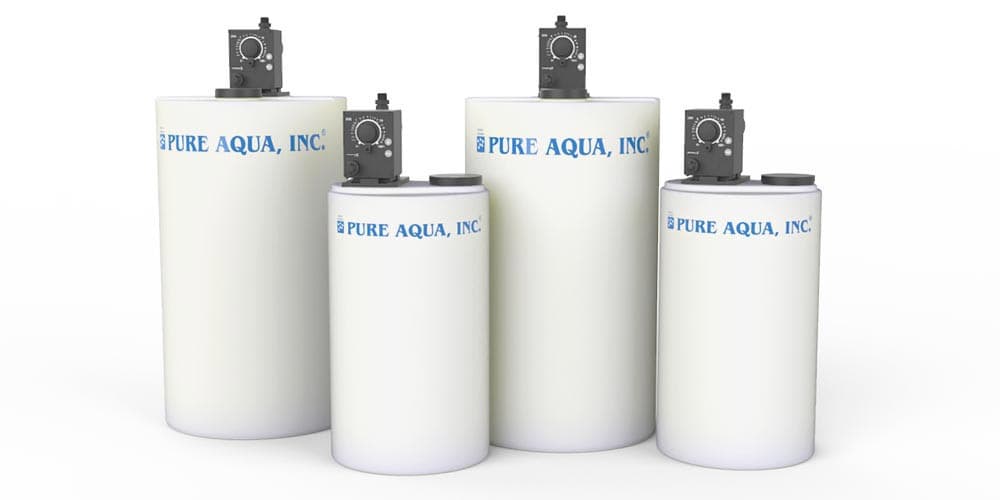

The Pure Aqua CDS series chemical dosing systems offer a wide range of capacities to meet various chemical treatment applications. Each system includes the chemical metering pump and polyethylene chemical tank, along with the necessary hoses and fitting for the pump. Our chemical dosing systems are designed to be as durable as possible, handle as many different kinds of chemicals as possible, and retain as high an accuracy as possible. We are confident your chemcial dosing system is built to last.
Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.
Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.
This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.
Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.
Models
Models
| Model No. | Output Capacity | Max Pressure (PSI) | Pump Material | Tubing Connection | Electrical Data | NSF Rating | TankSize(Gal) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| GPD | LPD | Dosing Head | Valve Ball | Gasket | Watts | EnclosureClass | |||||
| Diaphragm Metering | |||||||||||
| CDS-6 | 6 | 23 | 100 | PVC | Ceramic | Teflon | 3/8” OD | 130 | IP41/NEMA3 | 125 | 15 |
| CDS-12 | 12 | 45 | 15 | ||||||||
| CDS-22 | 22 | 83 | 15 | ||||||||
| CDS-30 | 30 | 114 | 35 | ||||||||
| CDS-48 | 48 | 182 | 50 | ||||||||
| CDS-76 | 76 | 284 | 1/2” OD | 100 | |||||||
| CDS-96 | 96 | 356 | 100 | ||||||||
| CDS-120 | 120 | 454 | 150 | ||||||||
| Digital Metering | |||||||||||
| CDS-36-G-15 | 36 | 136 | 145 | PVC | Ceramic | EPDM | 1/4” OD | 19 | IP65/ NEMA 4X | Yes | 15 |
| CDS-36-G-35 | 35 | ||||||||||
| CDS-96-G-55 | 96 | 356 | 60 | 3/8” OD | 55 | ||||||
| CDS-96-G-100 | 100 | ||||||||||
Features
- Fully adjustable output capacity from 6-120 GPD
- Manual function control for stroke rate & length
- Highly reliable timing circuit
- EMI resistant
- Thermally protected solenoid with auto-reset
- Bleed valve assembly
- Plastic pvc head/fittings and polyethylene tank for a wide range of corrosion resistance to such chemicals as mild acid, chlorine, and caustic solution
- 230V/1Ph/50Hz or 60Hz (optional)
- Epoxy coated stainless steel mixer (optional)
- pH controller (optional)
- ORP controller (optional)
- Stand-by pump (optional)
- Skid mounted unit (optional)
- Custom built unit (optional)
- Pump maintenance spare kit (optional)
- Level switch (optional)
- Local control panel (optional)
