Product Description

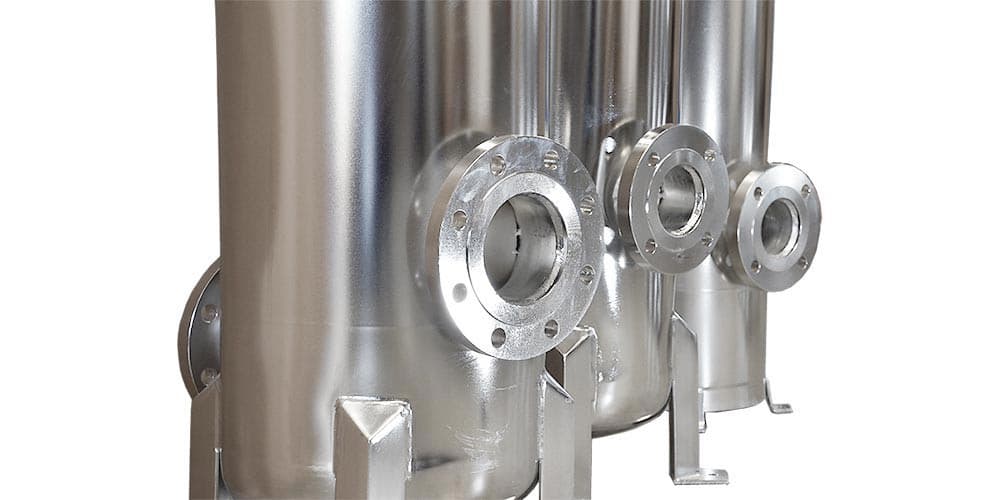

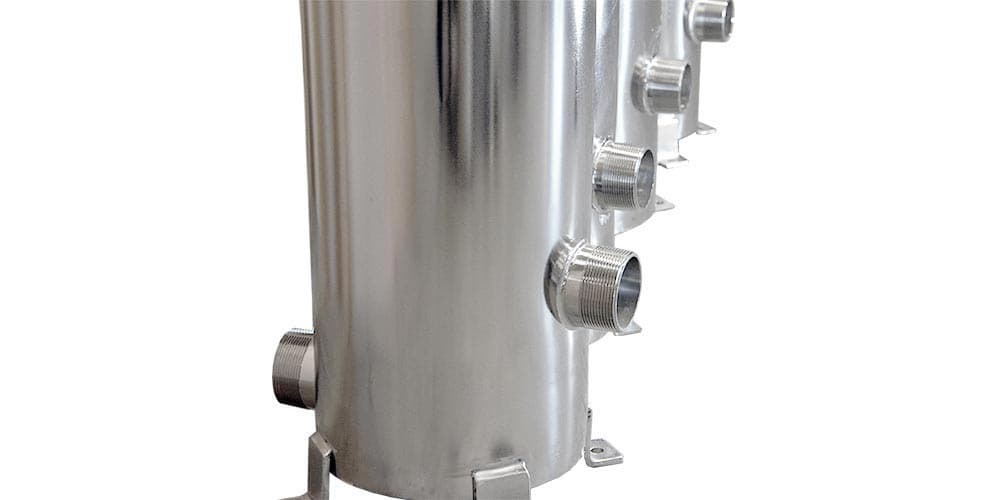

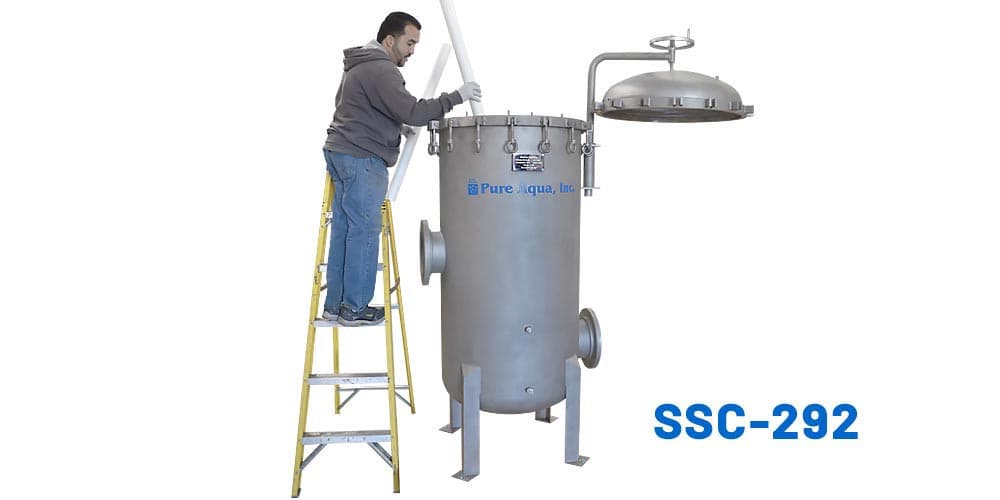

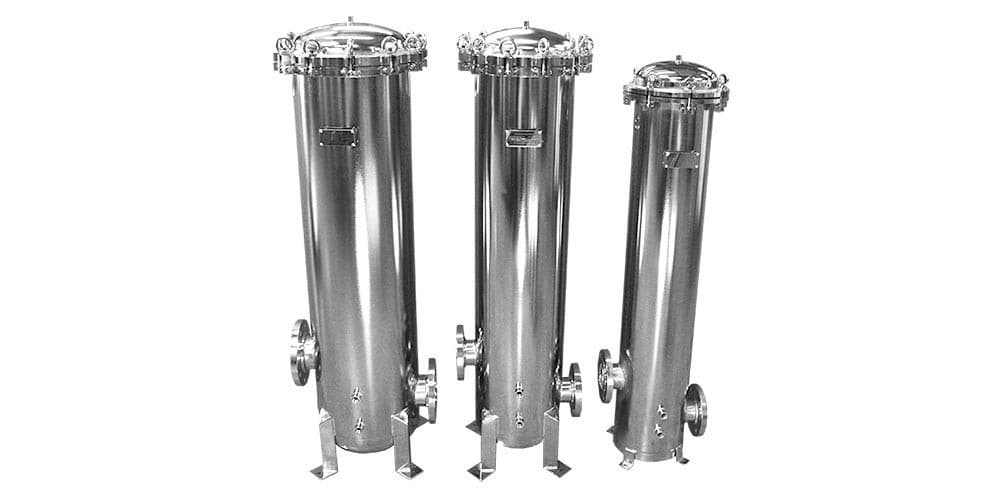

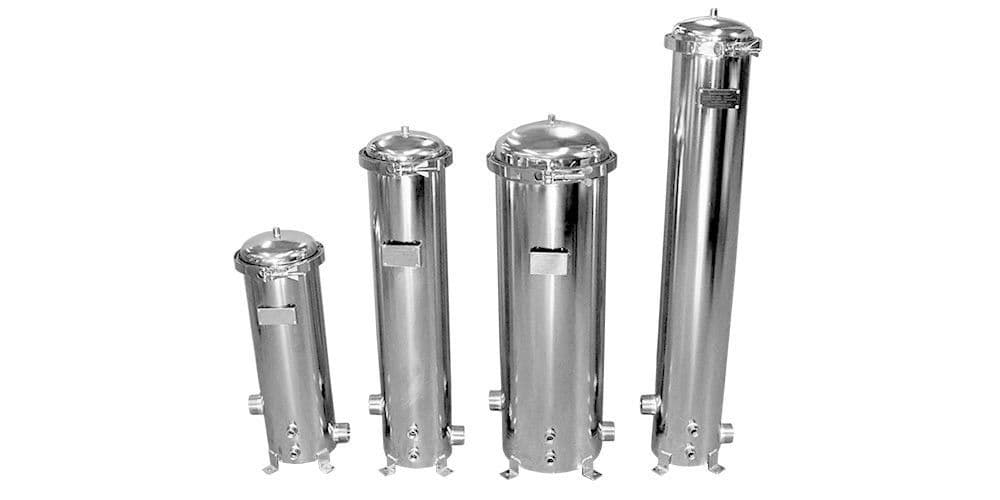

Stainless Steel Cartridge Filter Housings SSC Series are ideal for most industrial/commercial applications. SSC housings easily accept PA Cartridges. With our wide range of models, options, and filter cartridges, these units can easily meet most requirements, such as: filtration of particulates, chlorine taste and odor, and for inhibition of scale and corrosion.
Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.
Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.
This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.
Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.
Produces extremely pure water. Excellent product!
Terrific product. Gets the job done in removing organic substances from my water supply with low maintenance required.
Models
Features
- 3β-10β flanged, 2ββ MPT or 3/4"- 1β FPT connections
- Removable cartridge posts for easy cleaning
- 304 stainless steel housings
- 1/2β NPT drain connection for SSC-4 or larger
- Filtration for: silt, taste, odor or sediment
- Air vent for use before start-up or draining
- Accepts complete range of filter cartridges
- Operating pressure: 150 psi (10.3 bars) maximum
- Operating temp.: 40Β°-300Β°F (4Β°-149Β° C)
- Duplex systems (optional)
- 316 stainless steel housings (optional)
- Differential pressure switch & gauge (optional)
- Inlet/outlet sample valves (optional)
- Inlet/outlet pressure gauges (optional)
- Skid mounted pre-plumbed (optional)
- Drain valve (optional)
- Vent valve (optional)
- Sediment cartridges (optional)
- Activated carbon cartridges (optional)
- Electro-polished housing (optional)
- Isolation valves (optional)
