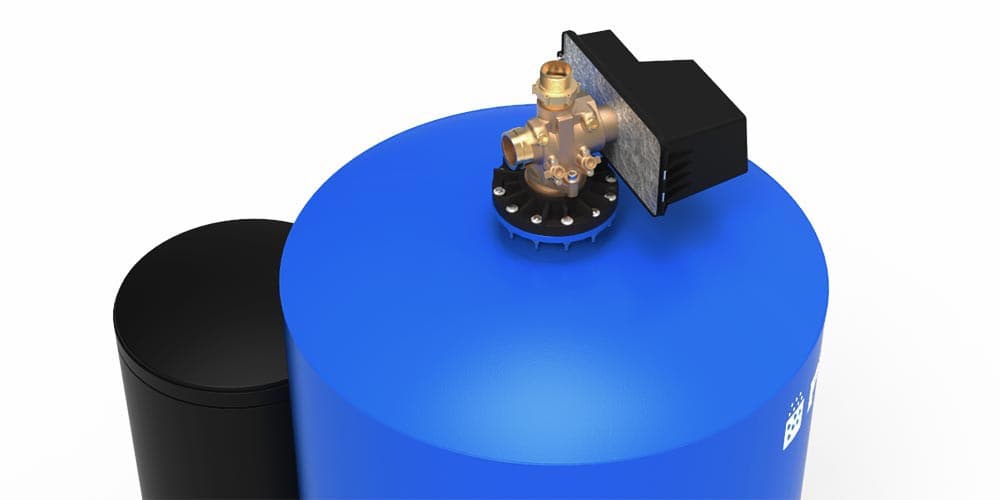

Commercial Water Softening Systems SF-150S with Fleck Valve

Pure Aqua offers first-rate commercial water softeners and water softener systems that can provide clean water for your commercial applications. We have several satisfied clients all around the world…

Commercial Water Softening Systems SF-150S with Fleck Valve

Product Images

Commercial Water Softening Systems SF-150S with Fleck Valve — image 2
Commercial Water Softening Systems SF-150S with Fleck Valve — image 3
Commercial Water Softening Systems SF-150S with Fleck Valve — image 4
Commercial Water Softening Systems SF-150S with Fleck Valve — image 5
1 / 4

Product Description

Pure Aqua offers first-rate commercial water softeners and water softener systems that can provide clean water for your commercial applications. We have several satisfied clients all around the world that use our water softener solutions.

Pure Aqua's commercial water softeners eliminates hard minerals from the product water using an effective resin. The resin absorbs calcium and magnesium ions (hard minerals) in the water and exchanges it with sodium ions (salt), which is regenerated in a periodic basis. As the hard ions begin greatly outnumbering the sodium ions, the system replenishes the resin with more salt by utilizing a brine solution. This process effectively cleanses off the hardness and adds more salt throughout the surface of the resin. The softened water is then sent to reverse osmosis systems for further treatment in order to completely eradicate the salt without the risk of scaling.

The SF-150S Series water softener is built with the necessary features to target and remove high concentrations of dissolved solids that produce hardness in water, especially magnesium and calcium. These systems consist of extremely high exchange capacity, which makes them suitable for virtually any commercial and industrial applications.

The SF-150S Series water softener is designed specifically to remove high levels of dissolved solids that create hard water conditions, principally Calcium and Magnesium. These systems have a very high operating capacity, which make them ideal for most commercial and industrial applications.

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.

Electrical supply120V/1Ph/60Hz/ 2 Amp
Operating temperature41-122°F (5-50°C)
Operating pressure25-100psi (1.73-6.9 bar)

Models

Model and part-number options for Commercial Water Softening Systems SF-150S with Fleck Valve are available by request.

Features

  • 7 day time clock
  • Epoxy lined steel tank, outer primer coat
  • All brass, motor driven control valve with fully adjustable regeneration cycles
  • Self-adjusting backwash controller
  • Flow controller to limit backwash flow
  • Timed brine refill control
  • High exchange capacity polystyrene resin
  • Brine tank with safety valve, cover, and tubing
  • 12 day time clock (optional)
  • Meter control (optional)
  • Tanks according to ASME code (optional)
  • FRP or galvanized steel tanks (optional)
  • Stainless steel tanks (optional)
  • 240V/1Ph/50Hz power supply (optional)
  • Additional micro switch for interlock (optional)
  • Twin or Duplex systems (optional)
  • Inlet/outlet sample valves (optional)
  • Inlet/outlet pressure gauges (optional)
  • Hot water applications (optional)
  • Nitrate removal systems (optional)

Applications

Typical applications for Commercial Water Softening Systems SF-150S with Fleck Valve include industrial, commercial, and municipal water treatment — contact our team for project-specific guidance.
