Large Water Softeners with Clack Valve SF-300C

The Pure Aqua's large water softener systems offer a robust and efficient solution for reducing mineral scale, soap usage, and energy consumption in the plumbing and other water-using equipment for…

Large Water Softeners with Clack Valve SF-300C

Product Images

Large Water Softeners with Clack Valve SF-300C — image 2
Large Water Softeners with Clack Valve SF-300C — image 3

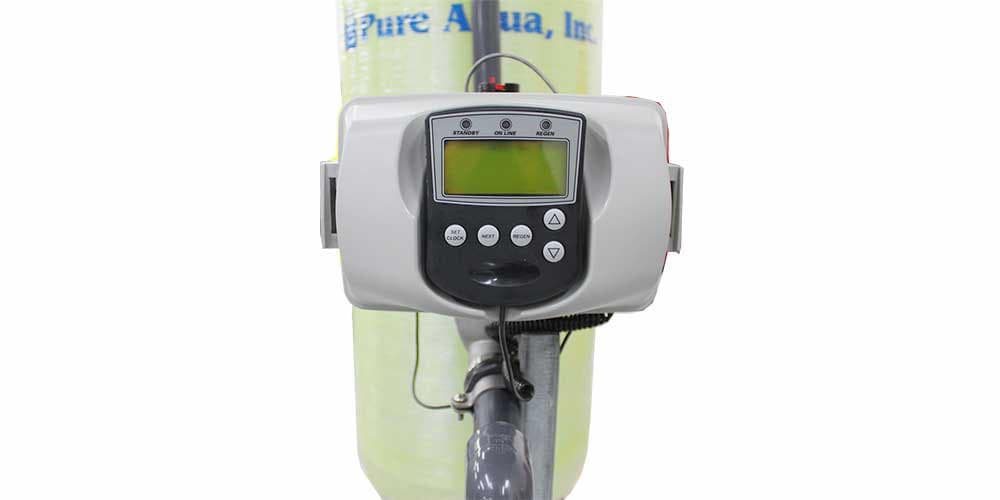

Large Water Softeners with Clack Valve SF-300C — image 4

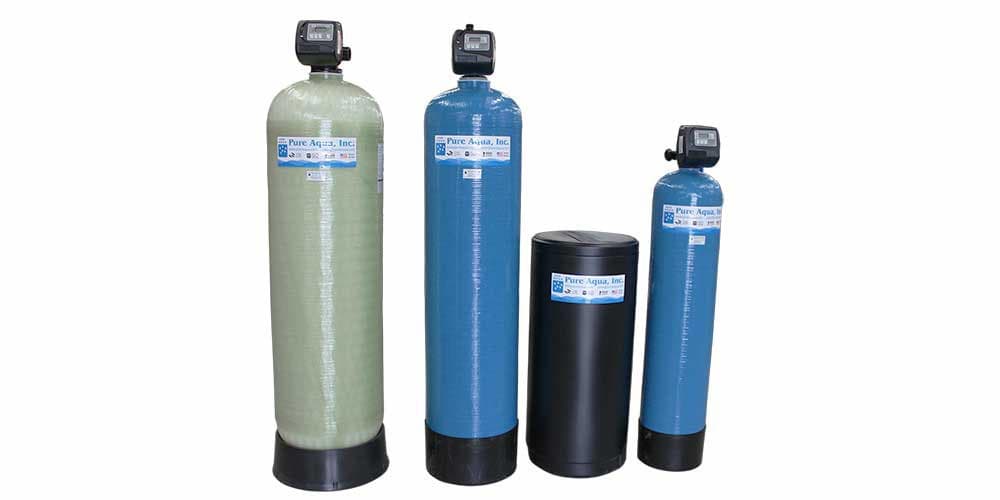

Large Water Softeners with Clack Valve SF-300C — image 5
1 / 4

Product Description

The Pure Aqua's large water softener systems offer a robust and efficient solution for reducing mineral scale, soap usage, and energy consumption in the plumbing and other water-using equipment for commercial, light industrial, and institutional facilities. The corrosion-resistant fiberglass-reinforced polyethylene tank design and reliable top mounted valve will provide many years of reliable service.

All large water softeners include an appropriately sized mineral tank, a commercial brine tank with brine tubing and connectors, a distributor tube, an appropriate amount of gravel and cross-link 8% resin, and a control valve of your choice. In addition, all systems are new with factory warranties.

These large softeners require periodic regeneration to reactivate the resin and replenish its salt concentration. This is accomplished by doing a brine draw from the brine tank and running it through the tank for a set period of time. During this phase, the resin will release its hardness and exchange it with salt from the brine tank. Because regeneration generally occurs at higher flow rates than those seen in service, often a proper regeneration flow rate is not possible because the systems are designed for required service flow rates.

Pure Aqua's large water softeners treat water by removing hardness using resin. The resin replaces the hardness in the water with salt, which is regenerated periodically.

Pure Aqua water softeners are commonly used for industrial, and commercial applications such as:

Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.

Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.

This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.

Electrical supply120VAC/1Ph/60Hz 2 Amp
Operating temperature35 - 100°F (2 - 38°C)
Operating pressure25 - 125 psi (1.73 - 8.6 bar)

Models

Model and part-number options for Large Water Softeners with Clack Valve SF-300C are available by request.

Features

  • 7 day time clock
  • Premium fiberglass mineral tank
  • Automatic motor driven control valve with fully adjustable regeneration cycles
  • Self-adjusting backwash controller
  • Flow controller to limit backwash flow
  • Timed brine refill control
  • High exchange capacity polystyrene resin
  • Rigid polyethylene brine tank with safety brine valve, dust cover, and tubing
  • 12 day time clock (optional)
  • Meter control (optional)
  • Epoxy lined or galvanized steel tanks (optional)
  • 240V/1Ph/50Hz power supply (optional)
  • Additional micro switch for interlock (optional)
  • Inlet / Outlet sample valves (optional)
  • Inlet / Outlet pressure gauges (optional)
  • Twin or Duplex systems (optional)
  • Diaphragm valves (optional)
  • ASME coded tanks (optional)
  • Stainless steel tanks (optional)
  • Interlock wiring (optional)
  • Hot water applications (optional)
  • Nitrate removal systems (optional)
  • Vacuum breaker (optional)

Applications

Typical applications for Large Water Softeners with Clack Valve SF-300C include industrial, commercial, and municipal water treatment — contact our team for project-specific guidance.
