Product Description

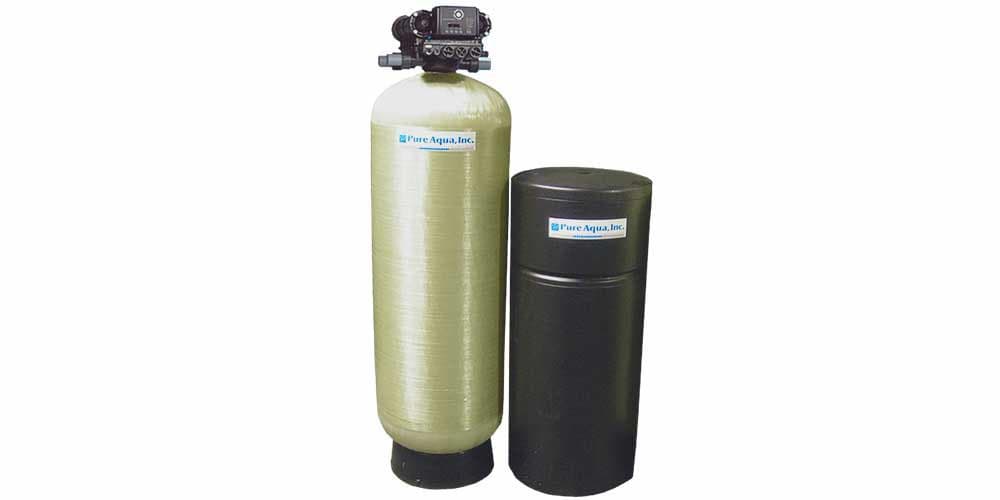

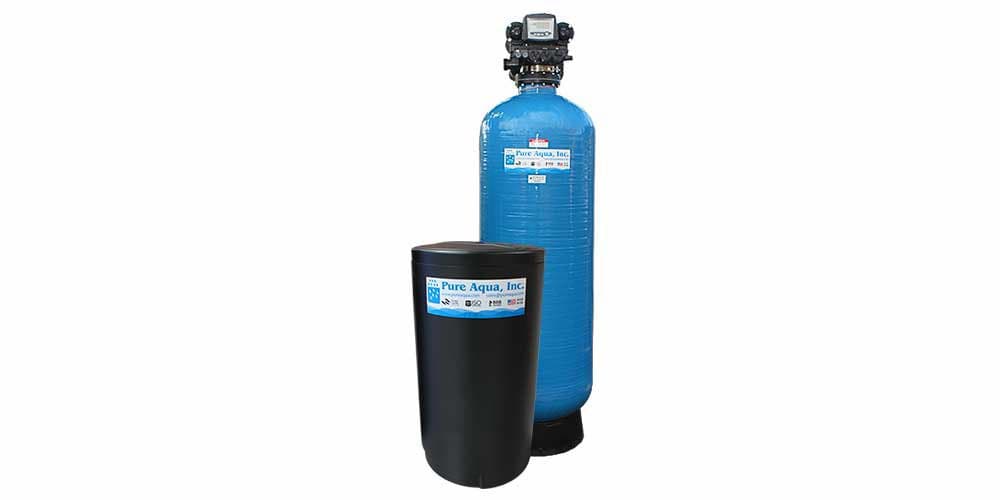

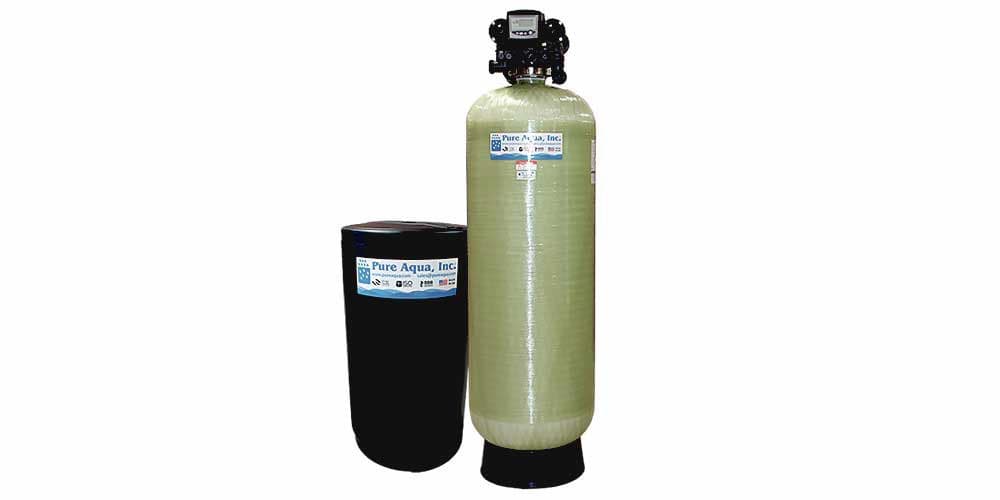

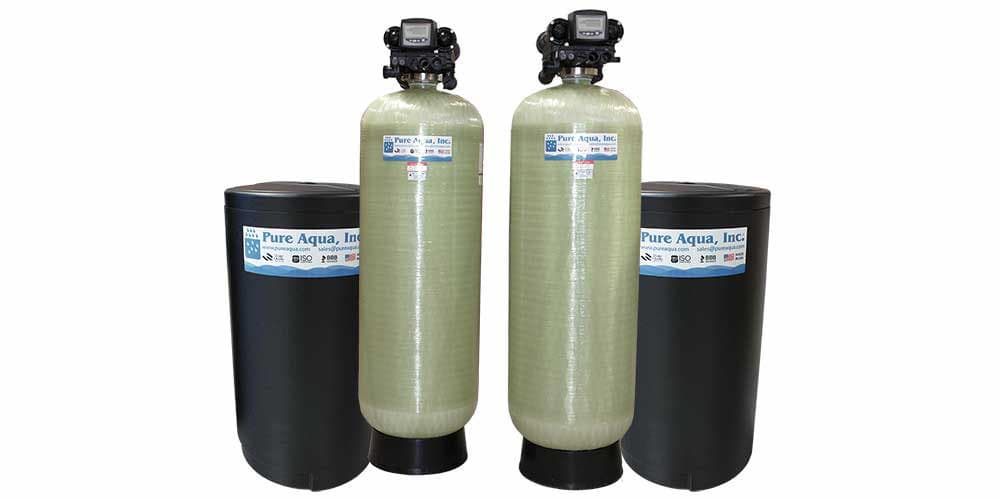

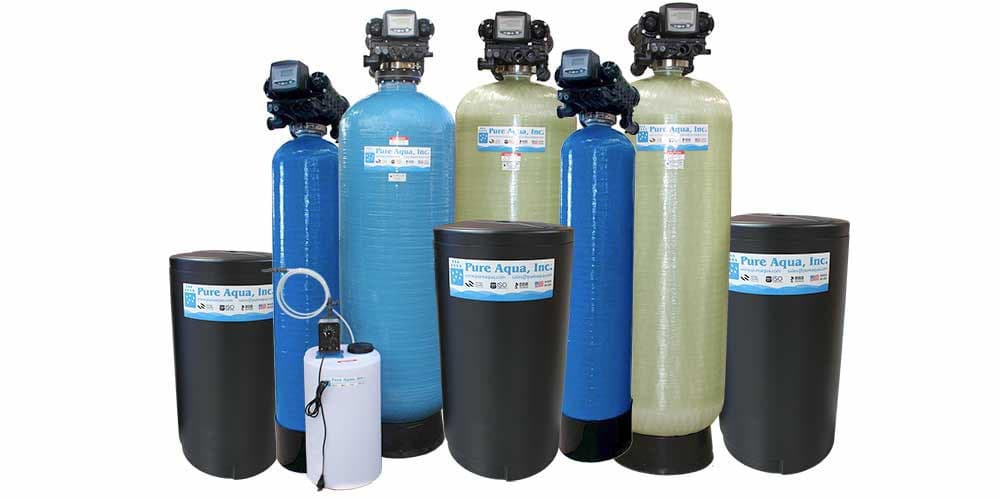

Pure Aqua offers the SF-250A Series water softener with Autotrol valve that is designed specifically to remove high levels of dissolved solids that create hard water conditions, principally Calcium and Magnesium. Pure Aqua's water softeners treat water by removing hardness using resin. The resin replaces the hardness in the water with salt, which is regenerated periodically. The softened water can then pass through an RO system to remove the salt without the risk of scaling. Softeners can be used in a variety of services including industrial, municipal, and institutional applications.
Our water softeners utilize high quality control valves manufactured by Autotrol. We are pleased to stock a comprehensive selection of Autotrol control valves that have remained extremely reliable in use with our water softeners. Autotrol valves work to monitor water usage and determine the appropriate time for regeneration.
The SF-250A Series water softener uses control valves from Autotrol and is designed specifically to remove high levels of dissolved solids that create "hard water" conditions, principally Calcium and Magnesium. These systems have a very high operating capacity, which make them ideal for most commercial and industrial applications.
Here at Pure Aqua, Inc., we engineer and build all of our water treatment systems in-house.
Our turn-key water treatment systems are all pre-engineered using the latest CAD technology available.
This enables our teams to build and deliver treatment systems to our customers with quick turnaround times.
Many of our customers require custom engineered systems. These are typically built around similar core systems and thus allowing for improved turnaround times, even for one-off designs.
I like the design of the industrial water softener and its ease of use
Models
Models
| Model # | Exchange Capacity(Grains) | Pipe Size | FlowRate (GPM) | Resin Qty.(Ft3) | Tank Size (Inch) | Salt Storage (lbs) | Shipping Weight (lbs) | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Avg. | Peak | Backwash | Softener | Brine | ||||||
| CV Series 7 Day Time Clock Control | ||||||||||
| CVP16120 | 120,000 | 2" | 30 | 45 | 7 | 4 | 16 X 65 | 24 X 50 | 900 | 365 |
| CVP18150 | 150,000 | 2" | 42 | 59 | 9 | 5 | 18 X 65 | 24 X 50 | 900 | 453 |
| CVP21180 | 180,000 | 2" | 52 | 71 | 12 | 6 | 21 X 62 | 24 X 50 | 900 | 563 |
| CVP21210 | 210,000 | 2" | 50 | 68 | 12 | 7 | 21 X 62 | 24 X 50 | 900 | 608 |
| CVP24240 | 240,000 | 2" | 49 | 67 | 15 | 8 | 24 X 72 | 24 X 50 | 900 | 818 |
| CVP24300 | 300,000 | 2" | 52 | 68 | 15 | 10 | 24 X 72 | 24 X 50 | 900 | 908 |
| CVP30450 | 450,000 | 2" | 60 | 81 | 25 | 15 | 30 X 72 | 30 X 50 | 1,400 | 1,380 |
| CVP36600 | 600,000 | 2" | 65 | 95 | 35 | 20 | 36 X 72 | 30 X 50 | 1,400 | 1,762 |
| For more information, please view/download our "Data Sheet" | ||||||||||
Features
- 7 day time clock
- 115V/1Ph/60Hz
- Premium fiberglass mineral tank
- Automatic motor driven control valve with fully adjustable regeneration cycles
- Operating pressure: 30 - 125 psi (2 - 8.5 bars)
- Operating temperature: 35 - 100°F (2 - 38°C)
- Self-adjusting backwash controller
- Flow controller to limit backwash flow
- Timed brine refill control
- High exchange capacity polystyrene resin
- Rigid polyethylene brine tank with safety brine valve, dust cover, and tubing
- Meter control (optional)
- Tanks according to ASME code (optional)
- Epoxy lined steel tanks (optional)
- Stainless steel tanks (optional)
- 240V/1Ph/50Hz power supply (optional)
- Additional micro switch for interlock (optional)
- Interlock wiring (optional)
- Inlet / Outlet sample valves (optional)
- Inlet / Outlet pressure gauges (optional)
- Systems using diaphragm valves (optional)
- Hot water applications (optional)
- Systems for nitrate removal (optional)
- Vacuum breaker (optional)
